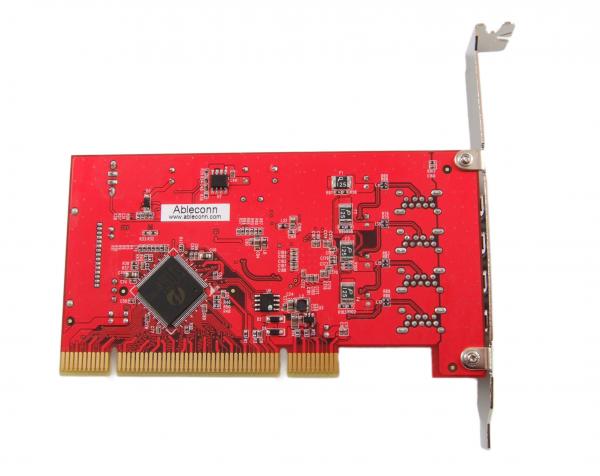

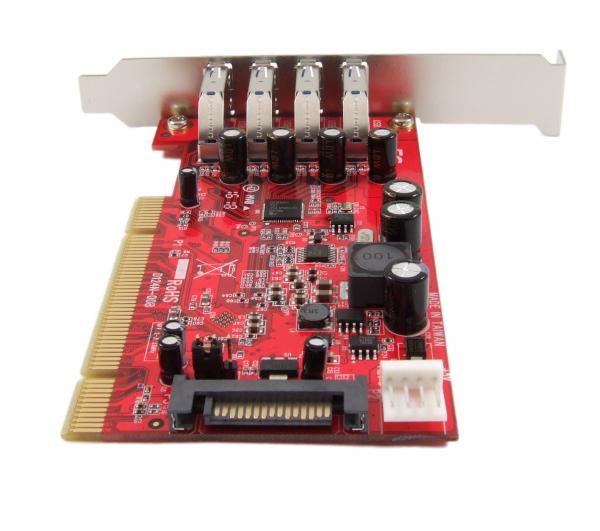

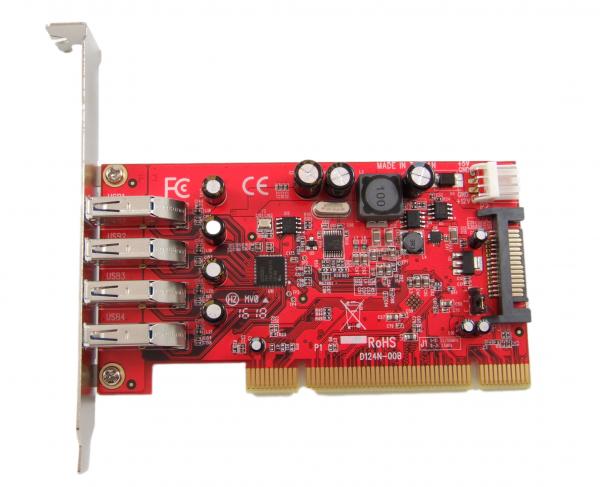

Ableconn PCI-UB124 USB 3.0 4-Port Low Profile PCI Host Adapter Card - Renesas NEC UPD720201 chipset

Ableconn PCI-UB124 USB 3.0 4-Port Low Profile PCI Host Adapter Card - Renesas NEC UPD720201 chipset

  • Product Specification:

    • Dimensions 4.8 x 2.6 x 0.8 in / 123 x 65 x 20 mm
    • Weight 2.7 ounces / 76 g
    • Capacity USB 3.0 up to 5 Gbps
    • Chipset Renesas NEC UPD720201 + Pericom PI7C9X111SL bridge
    • Compatibility No driver installation is required on Windows 10, 8, Server 2012, Linux kernel 2.6.31 and later OS.
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets

  • Four USB 3.0 Type-A connectors.
  • PCI Low Profile board. Include both Low Profile and Regular Size PCIe brackets.
  • Include a 15-pin SATA power connector and a 4-pin floppy connector options to ensure sufficient power on each USB host port.
  • No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
  • Built with NEC Renesas UPD720201. Fully RoHS compliant. Made in Taiwan.



Product Description

Add Four SuperSpeed USB 3.0 Type-A ports in Low Profile PCI Host Adapter to support all kind of USB3.0, USB2.0, and USB1.1 devices in your PCI motherboard.



Specification

  • Connector:
    • 4 x USB 3.0 Type-A female
    • 1 x 15-pin SATA power connector
    • 1 x 4-pin Floppy power connector
  • Chipset: Renesas NEC UPD720201 + Pericom PI7C9X111SL bridge
  • Software:
    • No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
    • The Renesas drivers are available for 32/64 bit Windows Windows 7/Vista/XP, and 64bit Server 2008 R2
  • PCI 33 / 66MHz Host Adapter
  • Compliant with PCI Specification 3.0
  • Compliant with Universal Serial Bus 3.0 Specification Rev. 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
  • Four USB 3.0 ports that offer SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Support USB3.0, USB2.0 and USB1.1 devices
  • Provides USB 3.0 power to USB devices from Motherboard PCI slot directly, or from PC power supply if either floppy 4Pin or SATA 15Pin Power connector is connected
  • Low Profile PCI Form Factor board
  • Include both Low Profile and Regular Size (on board) PCI brackets
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • Ableconn USB 3.0 4-Port PCI Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide

Customer FAQ

Q 1 .   The card doesn't work. There is a yellow bang on "PCI-to-PCI Bridge" in Device Manage with (Code 10) {Operation Failed} error. What should I do?
Answer:

This issue is depends on system/motherboard BIOS.  You are getting this error because your BIOS is likely in native PCIe mode. The way that you can tell that your computer is in native PCIe mode is that one of your ports will be listed as a "PCI standard PCI Express to PCI/PCI-X Bridge" in the Windows Device Manager. Because the card is a PCI card rather than a PCIe, the BIOS is having trouble enumerating the adapter card while your PC is in native PCIe mode.

In order to disable PCIe native mode, try the following steps:

1.      Open the start menu and type cmd in the search box

2.      Right-click on cmd.exe and select Run as administrator

3.      In the command window, type bcdedit /set pciexpress forcedisable

4.      Reboot your computer

If you decide that you want to enable native PCIe mode again, you can reverse this using the command: bcdedit /set pciexpress default
