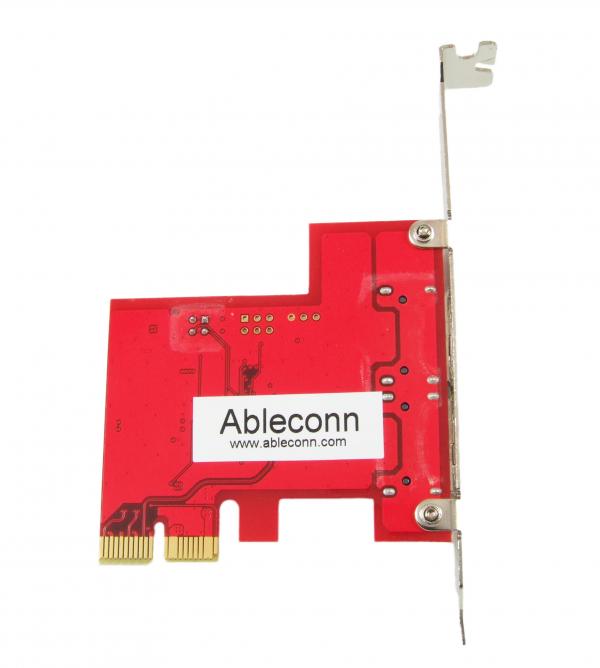

Ableconn PEX-SA130 2-Port eSATA III 6Gbps PCI Express Two Lanes Host Adapter Card - AHCI Port-Multiplier PCIe 2.0 x2 Controller Card - ASMedia ASM1062 Chipset

Ableconn PEX-SA130 2-Port eSATA III 6Gbps PCI Express Two Lanes Host Adapter Card - AHCI Port-Multiplier PCIe 2.0 x2 Controller Card - ASMedia ASM1062 Chipset

  • Product Specifications:

    • Dimensions 2.6 x 2.8 x 0.7 inches / 64 x 72 x 18 mm
    • Weight 1.4 ounces / 38 g
    • Capacity PCIe 2.0 x2 Lane; Up to 6 Gbps (SATA III)
    • Chipset ASMedia ASM1062
    • Supported System No driver installation is required. The AHCI drivers are natively built-in on Windows 11, 10, 8, 7, Vista, 2008, 2012, Linux, Mac 10.x and later.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Supports SATA III transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
  • Built with ASMedia ASM1062. 6Gbps eSATA III External PCIe Gen2 x2 lanes host adapter.
  • Supports two SATA Port Multipliers and up to 10 SATA drives in total when connecting with two 5-port PMs.
  • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later.
  • High quality. Fully RoHS compliant. Made in Taiwan.


Product Description

Add two external eSATA III ports that support Port Multipliers to your computer.

Specification

  • Connector:
    • 2 x eSATA (7 pin; Data) Female
    • PCI Express x2 Male
  • Chipset: ASMedia ASM1062
  • Software:
    • No driver installation is required on Windows 11/10/8/7/Vista, Server 2012/2008, Linux, Mac OS X 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
  • Data transfer rate:
    • Up to 6 GBps
  • 6Gbps eSATA III External PCIe Gen2 x2 lanes host adapter
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with 5Gbps PCI Express 2.0
  • Fully compliant with Serial ATA specifications 3.2
  • Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports two (2) SATA command mode Port Multipliers with Command-based switching, resulting total max 10 SATA drives or SSD when connecting with two 5-port Port Multipliers.
  • Supports SATA Hotplug and Native Command Queuing (NCQ)
  • Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included
  • Require an empty PCIe x2 or x4 or x8 or x16 slot in computer
  • BIOS on board supports Windows booting
  • LED Pin headers for LED activity indicators for each port
  • Fully RoHS compliant.
  • Made in Taiwan


Package Contents

  • Ableconn 2-Port eSATA 6G PCI Express Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
