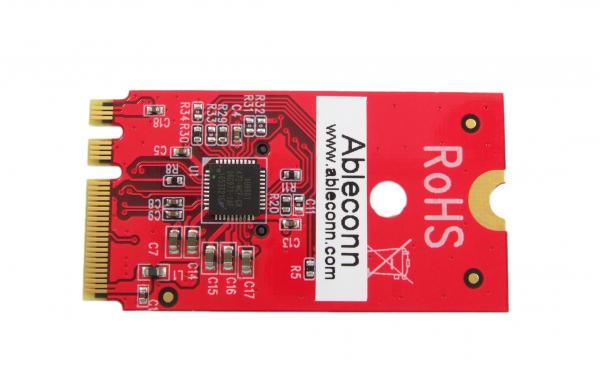

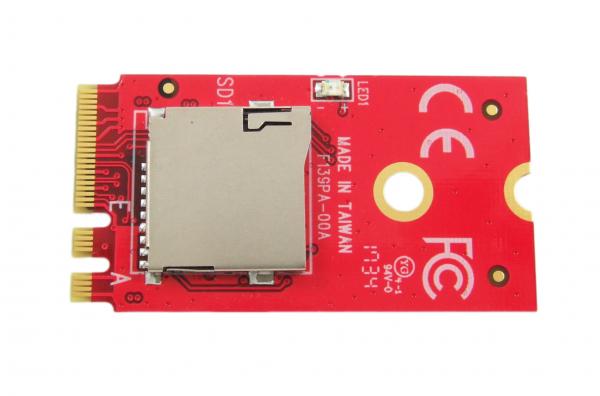

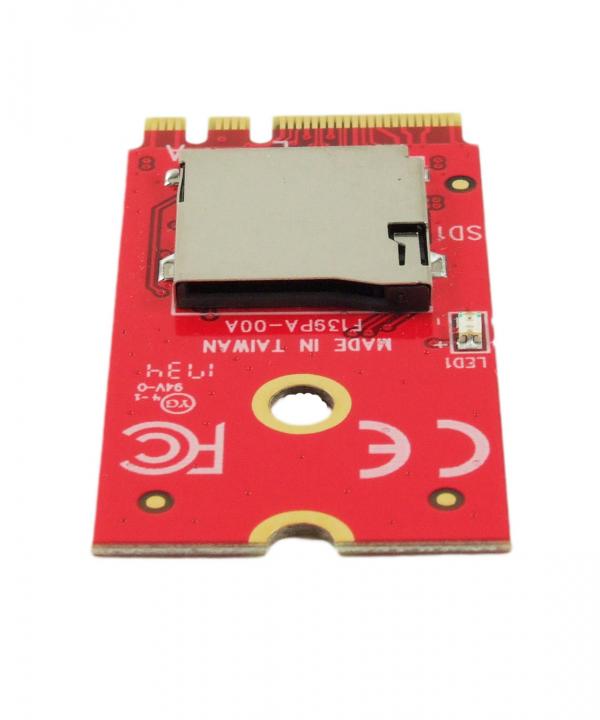

Ableconn M2SD139PA M.2 A-E Key Module with Micro SD Socket - Support Micro SD 3.0 (SDXC) via Fast PCIe

Ableconn M2SD139PA M.2 A-E Key Module with Micro SD Socket - Support Micro SD 3.0 (SDXC) via Fast PCIe

  • Product Specifications:

    • Dimensions 1.6 x 0.9 x 0.1 inches / 42 x 22 x 2 mm
    • Weight 0.1 ounces / 2 g
    • Input 1x Micro SD socket
    • Output M.2 (type 2242-D5-A-E Dual A-E Key notch) 75-Pin
    • Chipset Alcor AU6601
    • Supported System Windows driver is available
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Utilize up to 2TB Micro SD 3.0 (SDXC) Memory Card in Embedded Motherboard with M.2 A Key or E key Socket via fast PCIe signals
  • Supports M.2 type 2230 and 2242 plated-holes
  • PCBA size: 42mm x 22mm / 1.65" x 0.87"
  • Windows driver available
  • Fully RoHS compliant. Made in Taiwan.


Product Description


The Ableconn M2SD139PA allows you to Install a Micro SD to system via a M.2 A Key or E key socket using PCIe signals.


Features



  • Connector:
    •  1x Micro SD socket
    •  1x Fast PCIe based M.2 (type 2242-D5-A-E Dual A-E Key notch) 75-Pin



  • Chipset: Alcor AU6601
  • Software:
    •  Windows driver is available



  • Micro SD socket on board support up to 2TB Secure Digital Memory Card
  • Work with main board M.2 "A Key" and "E Key" Socket
  • Complies with Secure Digital Card (SD) specification up to ver. 3.0 (SDXC)
  • Supports SDR-104 / DDR 50.
  • Supports CPRM function.
  • 1K bytes of ping-pong FIFO buffs the data transmission between transmitter and receiver
  • Supports M.2 type 2230 and 2242 plated-holes
  • Supports industrial operating temperature range: -40 - 80 ºC
  • PCBA size : 42mm x 22mm / 1.65" x 0.87"
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn PCIe Based M.2 Module to Micro SD 3.0


Warranty



  • Limited One-Year Warranty and Lifetime Product Support
