Ableconn PU31A-ESA 1-Port USB 3.1 10 Gbps Type-A & 1-Port eSATA III 6 Gbps PCI Express (PCIe) x4 Host Adapter Card

Ableconn PU31A-ESA 1-Port USB 3.1 10 Gbps Type-A & 1-Port eSATA III 6 Gbps PCI Express (PCIe) x4 Host Adapter Card

  • Product Specifications:

    • Dimensions 3.2 x 0.6 x 2.7 inches / 81 x 13 x 70 mm
    • Weight 1.6 ounces / 44 g
    • Capacity Up to 10 Gbps for USB 3.1 and 6 Gbps for eSATA III
    • Chipset ASMedia ASM2142 + ASM1351
    • Supported System USB: No driver installation required on MacOS X 10.9 to 10.10, and 10.12 to 10.13, Windows 10, 8.1, 8, and Server 2012. eSATA: No additional driver required. Work with built-in native AHCI drivers on most Operating Systems
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • One 10Gbps USB3.1 port and one 6Gbps External eSATA III port PCI Express 3.0 x4 Lane Host Adapter
  • Low Profile board. Include both Low Profile and Regular Size PCIe brackets. PCIe x4 card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
  • Support up to 2A/5V on USB-A downstream port.
  • No driver installation is required on Mac OS X 10.9 to 10.10, and 10.12 Sierra (NOTE: does NOT work on OS X 10.11), Win10, 8.1, 8, and Server 2012. Driver download is available for 32/64 bit Windows 7/Vista, and Windows Server 2008/2003. Note: UASP featue is only available with Microsoft and OS X built-in drivers. Currently, the ASMedia driver does not have UASP feature.
  • Built with ASMedia ASM2142 with PCIe Gen3 x2 Lane performance. Fully RoHS compliant. Made in Taiwan.




Product Description


Add one USB 3.1 10Gbps Type-A port and one external eSATA 6Gbps port to your system.


Features

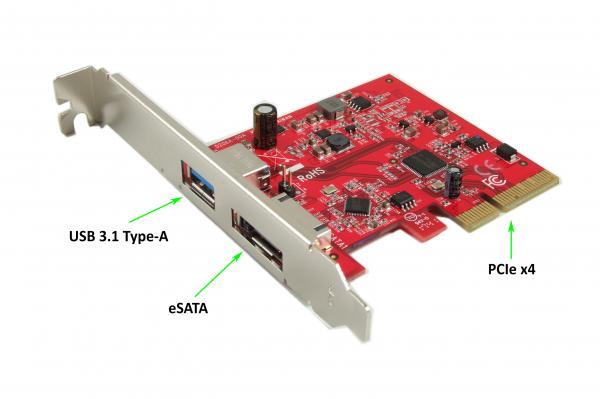

  • Connector:
    • 1 x USB 3.1 Type-A female
    • 1 x eSATA (7 pin; Data) Female



  • Chipset: ASMedia ASM2142 + ASM1351
  • One 10Gbps USB3.1 port and one 6Gbps External eSATA III port PCI Express 3.0 x4 Lane Host Adapter Card powered by ASM2142 with PCIe Gen3 x2 Lane performance.
  • Low Profile PCIe Form Factor board
  • Compliant with PCI Express Specification 3.0

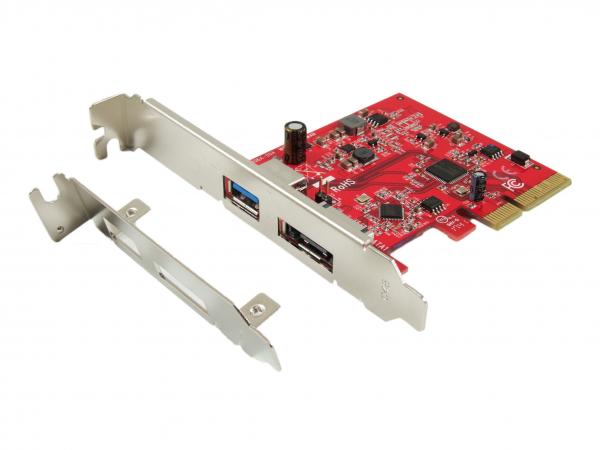

  • Include both Low Profile and Regular Size PCIe brackets
  • Require an empty PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance
  • Fully RoHS compliant



10Gbps Gen2 USB 3.1

  • Compliant with USB 3.1 Spec. Rev. 1.0, Intel xHCI Spec. 1.1.
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0.
  • Support USB 3.1, 3.0, 2.0, and 1.1 devices.
  • Software:
    • No driver installation is required on Mac OS X 10.9 to 10.10, and 10.12 to 10.13 (NOTE: does NOT work on OS X 10.11), Win10/8.1/8, Server 2012, and Linux 2.6.31 and later. The OS native built-in drivers feature UASP.
    • The ASMedia driver for 32/64 bit Windows 7/Vista, and Server 2008/2003 is available from our website. (ASMedia driver doesn't support UASP)



  • Data transfer rate:
    • USB 3.1 Gen2 up to 10 Gbps



  • Power:
    • Support up to 2A/5V on USB-A downstream port.



6Gbps Serial ATA 3.0

  • Fully compliant with Serial ATA specifications 3.0 transfer rate of 6Gbps
  • Supports SATA I & SATA II & SATA III HDD, SSD, Optical Drive and Blu-Ray Drive
  • Supports ATA and ATAPI commands
  • Supports SATA Hot-plug and Native Command Queuing (NCQ)
  • No Port Multiplier and No SATA ODD support
  • No additional driver required. Work with built-in native AHCI drivers on most Operating Systems.


Package Contents

  • Ableconn 1-port USB 3.1 & 1-port eSATA PCIe x4 Card
  • One low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
