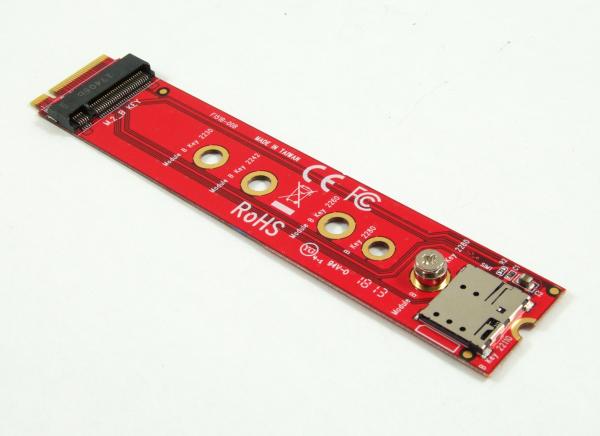

Ableconn M2MN-151B NGFF M.2 B-Key Riser Card

Ableconn M2MN-151B NGFF M.2 B-Key Riser Card

  • Product Specification:

    • Dimensions 4.3 x 0.8 x 0.2 inches / 110 x 21 x 5 mm
    • Weight 0.3 ounces / 8 g
    • Compatibility OS independent; No driver installation required
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets

  • Protect the M.2 socket of main board from damage
  • Support M.2 B Key and B-M Key Module, such as WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm SATA SSD
  • Multiple plated-holes support M.2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module
  • No driver installation is required. 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux.
  • Fully RoHS compliant. Made in Taiwan.



Product Description


The Ableconn M2MN-151B protects the M.2 socket of main board from damage.


Features

  • Connector:
    • 1x B-key (type 2280-D3-B) M.2 socket on board
    • 1x M.2 (type 22110-D5-B B Key notch) 75-Pin Male - make it a 110mm PCBA Module



  • Software:
    • No driver installation is required.
    • 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux



  • System Requirement:
    • - One empty M.2 B-key socket.



  • Protect the M.2 socket of main board from damage
  • Support M.2 B Key and B-M Key Module, such as WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm SATA SSD
  • Multiple plated-holes support M.2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module
  • PCIe x1 & USB2.0 & SATA signal interface between M.2 B-Key socket
  • WWAN Nano-SIM card holder on the top side
  • Transparent to the operating system and no driver required
  • Support industrial operating temperature range: -40 - 80 ºC
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn M2MN-151B M.2 B-Key Riser Card
  • 1x mounting screw


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
