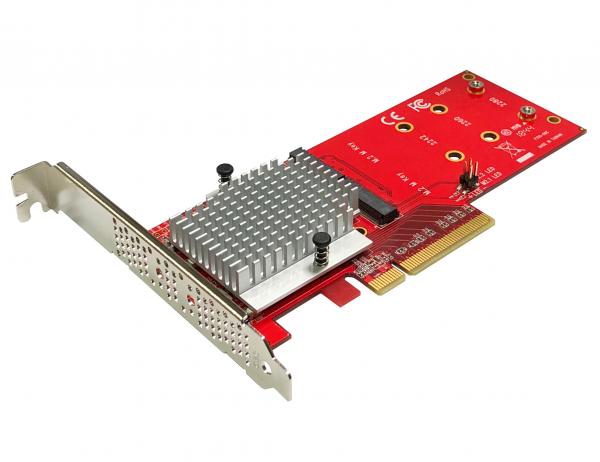

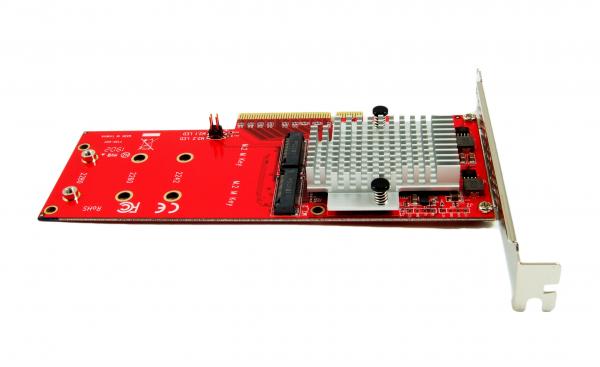

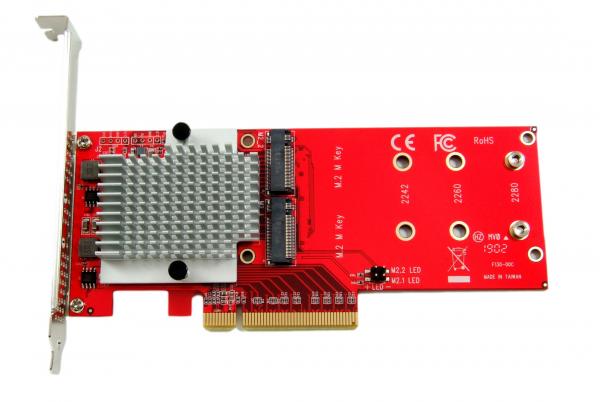

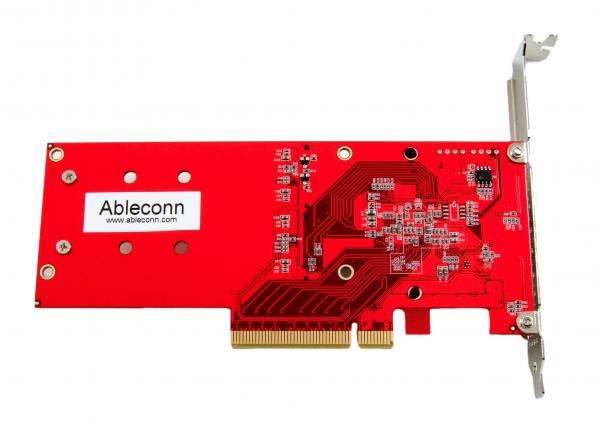

Ableconn PEXM2-130 Dual PCIe NVMe M.2 SSDs Carrier Adapter Card - PCI Express 3.0 x8 Card Support 2X M.2 NGFF PCIe NVMe SSD (ASMedia ASM2824 Chipset) - Support Non-Bifurcation Motherboard

Ableconn PEXM2-130 Dual PCIe NVMe M.2 SSDs Carrier Adapter Card - PCI Express 3.0 x8 Card Support 2X M.2 NGFF PCIe NVMe SSD (ASMedia ASM2824 Chipset) - Support Non-Bifurcation Motherboard

  • Product Specifications:

    • Dimensions 6.3 x 2.8 x 0.6 inches / 162 x 70 x 15 mm
    • Weight 2.9 ounces / 82 g
    • Capacity PCIe x8 card
    • Compatibility M.2 type 2280, 2260 and 2242 SSD
    • Supported System No driver required. Windows 11/10/8, Windows Server 2016/2012 R2 and later; Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Product Review in video:  Ableconn - Dual NVMe Adapter Card



Note: this adapter is only for 'M' key M.2 PCIe (NVMe or AHCI) SSD. Not compatible with a 'B' key (SATA or PCIe x2) SSD.



Feature Bullets



  • Install two (2x) M.2 NGFF PCIe based (AHCI or NVMe) SSD on a single PCIe x8 Card
  • PCI Express 3.0 x8 Lane Host adapter. Supports PCIe 2.0 and PCIe 3.0 motherboard
  • Supports PCIe Gen3 and Gen2 M.2 NGFF 80mm, 60mm, 42mm SSD. Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD
  • Note: this adapter is only for 'M' key M.2 PCIe SSD such as Samsung XP941/SM951/950/960/970, Plextor M6e Series, Kingston HyperX Predator M.2 SSDs. Not compatible with a 'B' key M.2 PCIe x2 SSD or 'B' key M.2 SATA SSD.
  • Fully RoHS compliant. Made in Taiwan.



Product Description


The Ableconn PEXM2-130 allows you to install two M.2 NGFF PCIe (AHCI or NVMe) SSD on a single Low Profile PCIe 3.0 x8 card to your PC System.


Features



  • Connector:
    • 2x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe based SSD
    • PCI Express x8 Male



  • Software:
    • No driver installation required.
    • Windows 11/10/8, Windows Server 2016/2012 R2 and later; Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI

Note: Please check the support of M.2 NVMe SSD vendor for NVMe driver on Windows 7 and Windows Server 2008 R2.



  • System Requirement:
    • An empty PCIe 3.0 or PCIe 2.0 x8, or x16 slot.

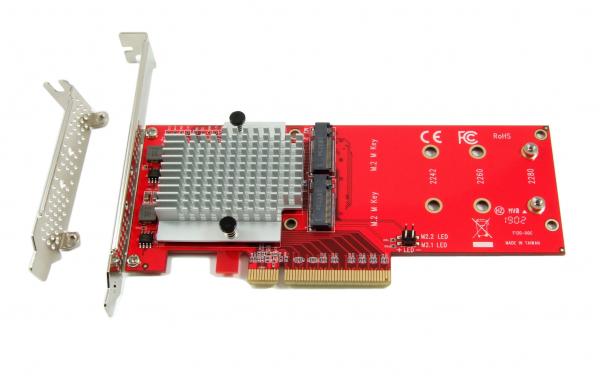

  • PCI Express 3.0 x8 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included

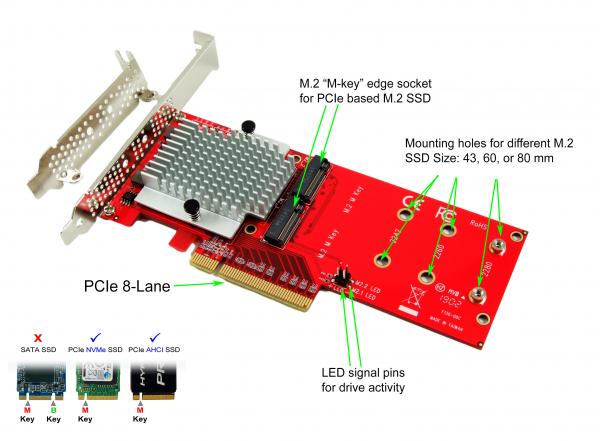

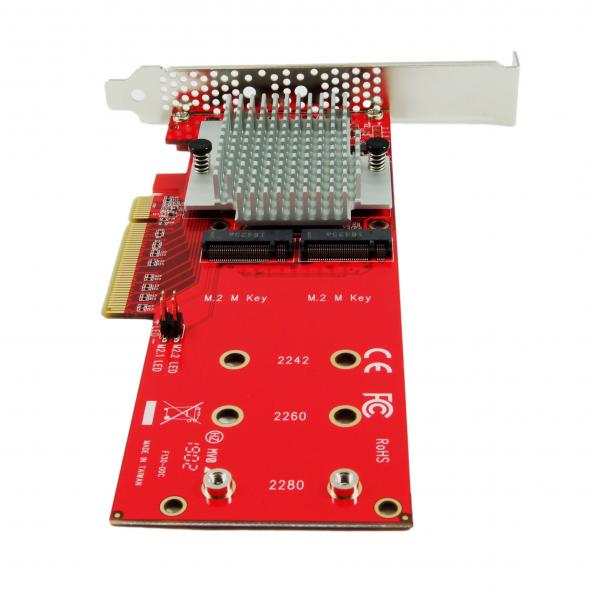

  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M.2. Supports M.2 NGFF 80mm, 60mm, 42mm SSDs.
  • Supports dual-sided M.2 SSD module with 1.5mm component height on the top and bottom side
  • Compliant with PCI Express 3.0
  • Pin header on board for drive LED connection
  • Support L1 Power Management Substates with CLKREQ
  • Fully RoHS compliant
  • Made in Taiwan

Note: SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter



Compatibility (Incomplete List)



  • Samsung XP941, SM951 (AHCI or NVMe), 950 Pro Series SSDs
  • Kingston HyperX Predator M.2
  • Plextor M6e Series M.2 SSD
  • Intel 600p SSD Series


Package Contents



  • Ableconn Dual M.2 NVMe SSDs PCIe x8 Carrier Adapter Card
  • 1x low profile PCIe bracket
  • 2x mounting screw


Warranty



  • Limited One-Year Warranty and Lifetime Product Support
