Ableconn PEX-SD137 PCI Express x1 Host Adapter Card for Fast SD 3.0 (SDXC)

Ableconn PEX-SD137 PCI Express x1 Host Adapter Card for Fast SD 3.0 (SDXC)

  • Product Specifications:

    • Dimensions 2.7 x 2.6 x 0.4 inches / 68 x 65 x 9 mm
    • Weight 1.3 ounces / 36 g
    • Input 1x SD socket
    • Output PCIe x1
    • Chipset Alcor Micro AU6601
    • Supported System Windows driver is available
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Utilize up to 2TB SD 3.0 (SDXC) Memory Card to Embedded Motherboard Mini PCIe Socket via fast PCIe signals.
  • Support SDR-104 / DDR 50 and CPRM function.
  • Low Profile PCIe form factor card.
  • Windows driver available
  • Fully RoHS compliant. Made in Taiwan.



Product Description



The Ableconn PEX-SD137 allows you to install an up to 2TB SD 3.0 (SDXC) memory card through a PCIe x1 card to your PC System.


Features

  • Connector:
    • 1x SD socket
    • PCI Epress x1 Male



  • Chipset: Alcor Micro AU6601
  • Software:
    • Windows driver is available



  • System Requirement:
    • An empty PCIe slot.



  • Regular SD socket on board support up to 2TB Secure Digital Memory Card
  • Complies with Secure Digital Card (SD) specification up to ver. 3.0 (SDXC)
  • Supports SDR-104 / DDR 50.
  • Supports CPRM function.
  • 1K bytes of ping-pong FIFO buffs the data transmission between transmitter and receiver
  • Supports industrial operating temperature range: -40 - 80 ºC
  • Low Profile PCIe form factor card
  • Regular size PCIe bracket on board and Low Profile bracket included
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • 1x Ableconn Fast SD 3.0 to PCI-E Adapter Card

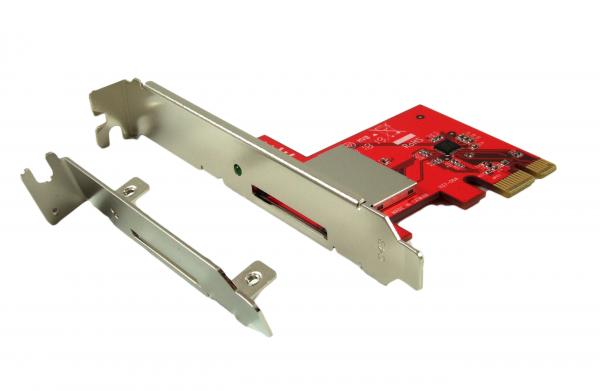

  • 1x low profile PCIe bracket


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
