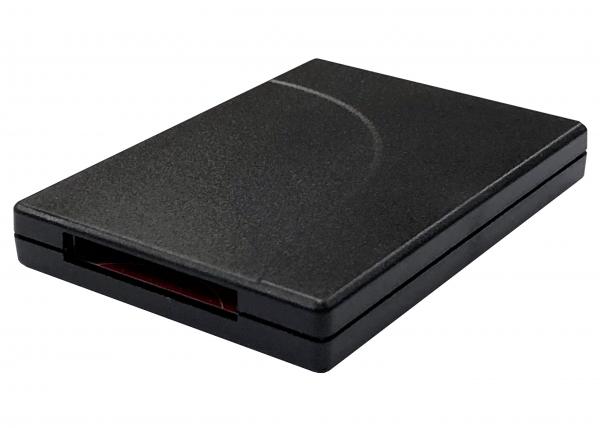

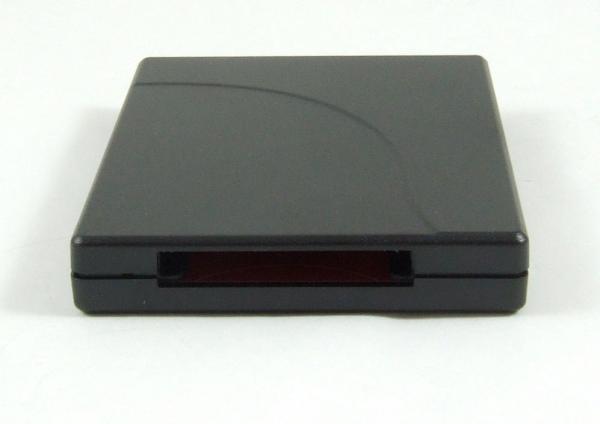

U31-CF154 USB 3.1 Type-C Enclosure for CFexpress SSD - CFexpress to USB-C

U31-CF154 USB 3.1 Type-C Enclosure for CFexpress SSD - CFexpress to USB-C

  • Product Specifications:

    • Dimensions 3.0 x 2.2 x 0.5 inches / 75 x 55 x 12 mm
    • Weight 1.9 ounces / 54 g
    • Capacity USB 3.1 Gen2 up to 10Gbps
    • Chipset ASMedia ASM2362
    • Supported System No driver installation is required on Windows, Mac, and Linux systems.
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets



  • Ultra slim sandblasted aluminum alloy enclosure with good heat dispation. Sleek, Portable, and Durable.
  • Supports CFexpress PCIe x2 based SSD
  • USB-C female connector on enclosure. USB 3.1 Gen2 Port supports data transmission speeds of up to 10Gbps data transfer. Backward compatible with USB 2.0 and USB 3.0.
  • Plug & Play, No driver installation is required on Windows 8/8.1/10, Mac OS 10.1 and above, and Linux.
  • Fully RoHS compliant. Made in Taiwan.



Product Description



The U31-CF154 allows you to install a CFexpress SSD to an external USB-C compact enclosure.


Specification

  • Connector:
    • 1x CFexpress socket
    • 1x Type-C USB 3.1 female



  • Chipset: ASMedia ASM2362
  • Software:
    • No driver installation required.
    • Windows 8/8.1/10, Mac OS 10.1 and above, and Linux.



  • Data transfer rate:
    • USB 3.1 Gen2 up to 10 Gbps



  • System Requirement:
    • An available USB-C port

Note: an available Type-C host port is required, a USB-A port (with 900mA/USB3 or 500mA/USB2) may not providing enough power for CFexpress SSD



  • Supports CFexpress PCIe x2 based SSD
  • 10Gbps USB 3.1 Type-C upstream connector on board
  • Directly to USB 3.1 Type-C Host Port via USB-C cable
  • Compliant with PCI Express Revision 3.1a
  • Compliant with NVM Express 1.3, USB 3.1 Gen 1/Gen 2, USB Attached SCSI Protocol (UASP) Rev 4 Specifications
  • CFexpress Push Push connector on board
  • Support TRIM command
  • Supports Hot-Swap of CFexpress & USB
  • Supports USB2.0/USB 3.1 Gen1/ Gen2 power saving mode
  • Supports 10 Gbps, 5 Gbps, 480 Mbps transaction
  • PCBA and CFexpress SSD powered by USB3.1 Type-C bus 5V
  • Supports operating temperature range: 0 - 70 ºC
  • Dimension: 5.1 x 1.4 x 0.4 inches
  • Weight: 1.9 ounces
  • Fully RoHS compliant. Product Made in Taiwan.


Package Contents

  • USB 3.1 Type-C Enclosure for CFexpress SSD
  • 1x USB-C cable



Warranty

  • Limited One-Year Warranty and Lifetime Product Support
