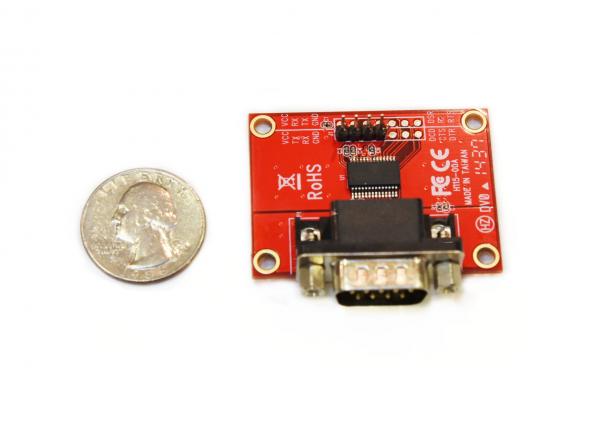

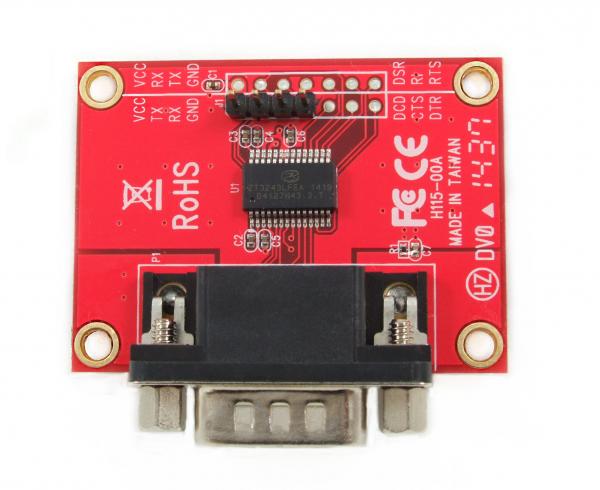

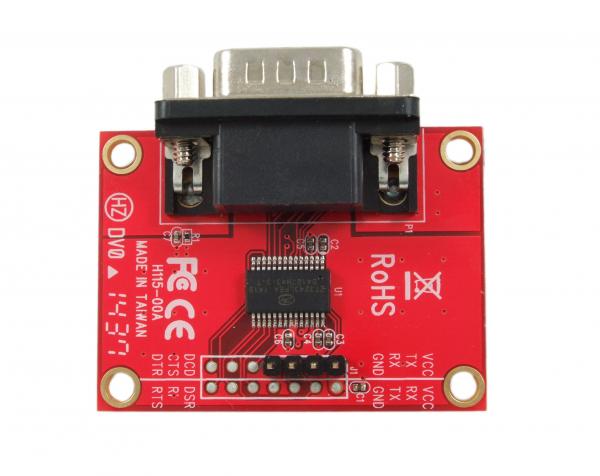

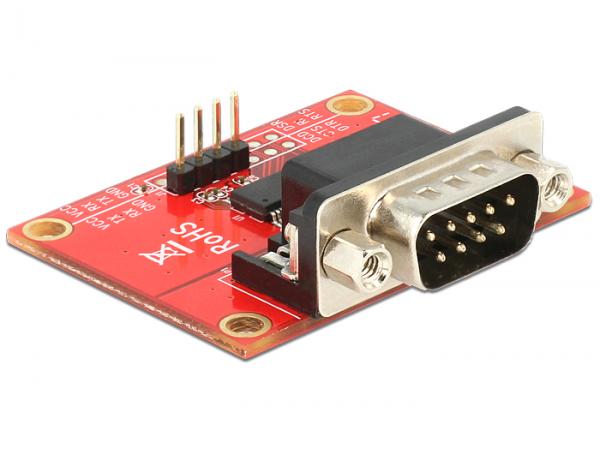

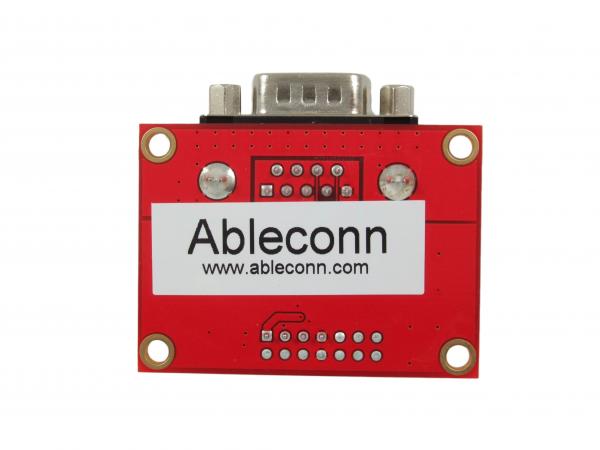

Ableconn PI232DB9M Compact GPIO TX / RX to DB9M RS232 Serial Expansion Board for Raspberry Pi

Ableconn PI232DB9M Compact GPIO TX / RX to DB9M RS232 Serial Expansion Board for Raspberry Pi

  • Product Specifications:

    • Dimensions 1.9 x 0.5 x 1.6 inches / 48.3 x 12.7 x 40.6 mm
    • Weight 0.5 oz / 14 g
    • Capacity Supports baud rate up to 230 Kbps; Supports VCC input 2.7V ~ 5.25V
    • Chipset zt3243 transceiver
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US

Product Description

Feature Bullets

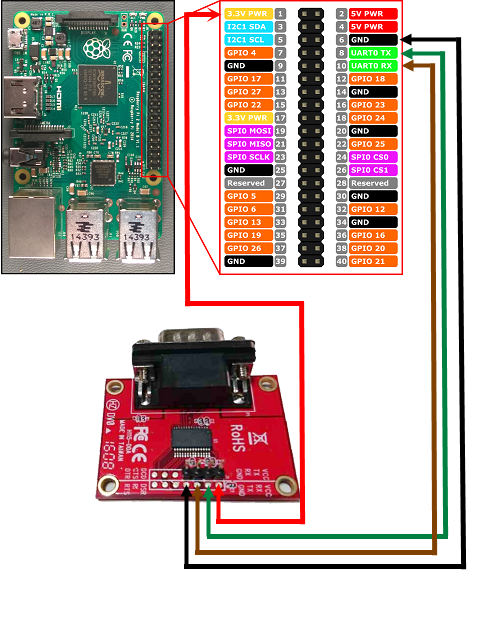

  • Connect Raspberry Pi TX / RX on GPIO header to a DB9M RS232 Serial port
  • Level shifter serial transmit (TX) and receive (RX) TTL level from the Pi to RS232 standard communication signals. Includes a PCBA and Pin Header cable for connecting with Pi GPIO.
  • Ideal to connect serial communication RS232 peripherals, industrial equipment (such as PLCs), serial console ports and special purpose equipment
  • Supports baud rate up to 230 Kbps; Supports VCC input 2.7V ~ 5.25V
  • CE, FCC, and Fully RoHS compliant. High quality product. Made in Taiwan.

Product Description

The Ableconn Pi accessory enables you to expand functions to your Raspberry Pi. The PI232DB9M let you add a 9-Pin DB9M serial port RS232 to your Raspberry Pi via an included cable that connects the 4-pin pin header and the GPIO pins of your Raspberry Pi .



Specification

  • Connector:
    • 1 x serial RS232 DB9 male
    • 1 x 4-pin pin header
  • Chipset: zt3243 transceiver
  • One 16550 High performance UART (RS232) channel
  • Data transfer rate:
    • UART data rate up to 230 Kbps
  • Level shifter serial transmit (TX) and receive (RX) TTL level from the Pi to RS232 standard communication signals
  • Supports VCC input voltage: 2.7V ~ 5.25V
  • No device driver installation is required.
  • Dimensions (LxWxH): 1.9 x 1.6 x 0.5 in / 48 x 41 x 13 mm
  • CE, FCC, and Fully RoHS compliant.
  • Made in Taiwan


System Requirements

  • GPIO pins for UART, +3.3V (Pi board), and GND


Package Contents

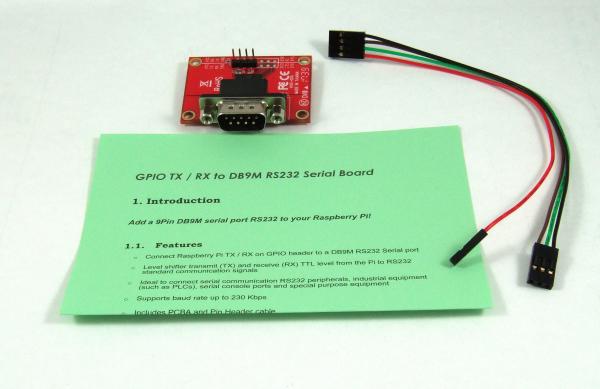

  • Ableconn PI232DB9M GPIO TX / RX to DB9M RS232 Serial Board

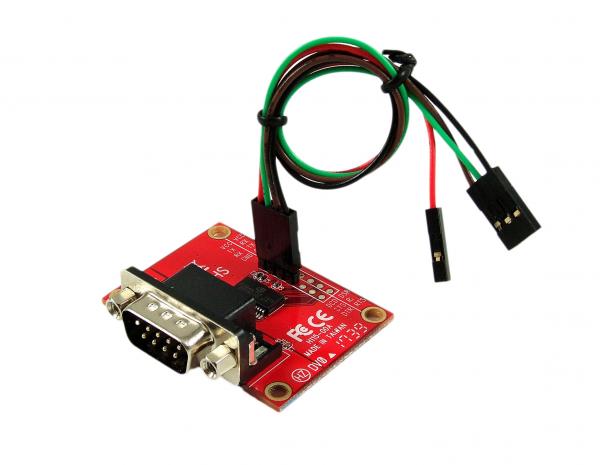

  • 1 x header cable (4-pin to 5-pin) for Raspberry Pi


Warranty

  • Limited One-Year Warranty and Lifetime Product Support
