Ableconn Aluminum DisplayPort to HDMI UHD (Ultra HD) 4K Cable Adapter (DP2HD4K0A) - DP 1.2 to HDMI up to 4K UHD 3840x2160@30Hz

Ableconn Aluminum DisplayPort to HDMI UHD (Ultra HD) 4K Cable Adapter (DP2HD4K0A) - DP 1.2 to HDMI up to 4K UHD 3840x2160@30Hz

  • Product Specification:

    • Dimensions 2.1 x 1.1 x 0.6 in / 3 x 27 x 15 mm
    • Weight 1.3 oz / 38 g
    • Input DisplayPort
    • Output HDMI Type-A female
    • Chipset Parade PS8402A
  • United States

Product Description

Feature Bullets

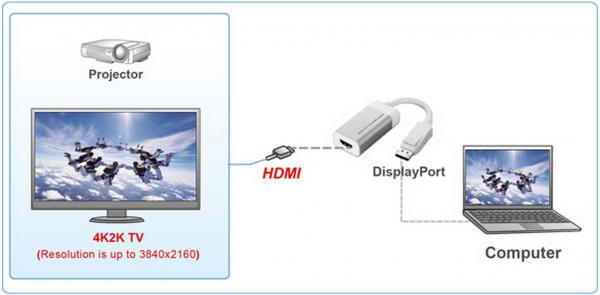

  • Connect a DisplayPort equipped Laptop or Desktop to an HDTV, projector, or display with HDMI input.
  • Built with Parade PS8402A chipset. Preminum aluminum solid housing and high quality cable to ensure EMC performance at high data rate.
  • Support resolutions up to 4K Ultra HD (or UHD) 3840x2160@30Hz (2160p) resolution and full HD 1080p HDTV, and stereoscopic 3D.
  • Plug and play - no driver software installation required.
  • CE, FCC certified. Built with high quality cable and over molded strain relief design to ensure superior flex life, tensile strength, and moisture protection.


Product Description
The Ableconn DP2HD4K0A is a high quality adapter which provides an easy and cost-effective solution for connecting an HDMI display such as monitor, projector, or HDTV to your DisplayPort equipped Mac or PC. The product is built with preminum aluminum solid housing along with high quality cable to ensure EMC performance at high data rate.

Specifications
  • Input: DisplayPort male
  • Output: HDMI Type-A female. An HDMI cable (not included) is required
  • Built with Parade PS8402A chipset.
  • Type 2 Dual-Mode DisplayPort (DP++) cable adapter
  • Connect up to 2 monitors via AMD Eyefinity Multi-Monitor graphics card (one adapter per monitor)
  • DisplayPort 1.2 and HDMI 1.4 compliant up to 3.0Gbps (300MHz TMDS Clock)
  • Support resolutions up to 4K UHD 3840 x 2160@30Hz and Stereoscopic 3D 1080p@120Hz
  • Supported Resolutions:
  • 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1360x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1776x1000, 1792x1344, 1800x1440, 1856x1392, 1920x1080, 1920x1200, 1920x2160, 2048x1152, 2048x1536, 2048x2160, 2560x1080@60Hz, 2560x1440@60Hz, 3840x2160@30Hz , 4096x2160@24Hz, 480i, 576i, 480p, 576p, 1080i, 1080p, 2160p@30Hz
  • Certification: FCC, CE
  • Bus-powered. Power Consumption: Maximum (4K Mode): 782mW; Standby Mode: < 400mW.
Note: Can only convert signal from DisplayPort to HDMI. This is not a bi-directional adapter.

Package Contents
* Ableconn DisplayPort to HDMI UHD 4K Adapter

Warranty
* Limited One-Year Warranty and Lifetime Product Support
