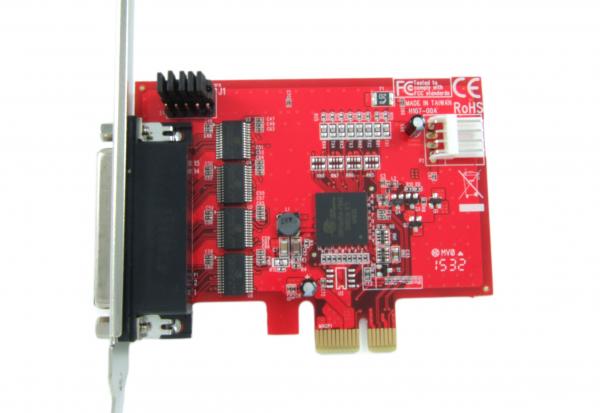

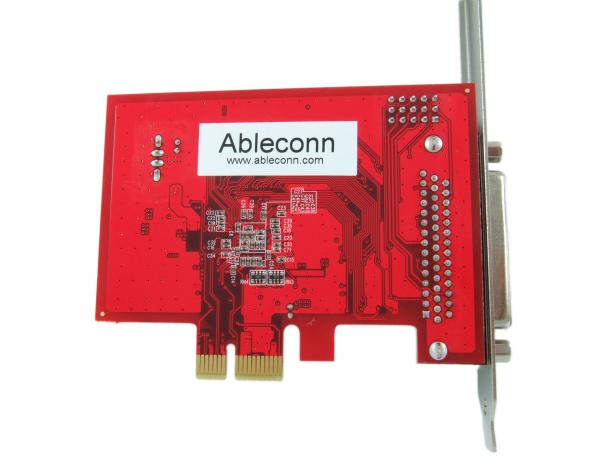

Ableconn PEX4S-954 4 Port RS232 PCI Express Serial Adapter Card with Power Output and 16950 UART (OXPCIe954 Chipset) - Optional 5V Power Output on Pin9 of DB9

Ableconn PEX4S-954 4 Port RS232 PCI Express Serial Adapter Card with Power Output and 16950 UART (OXPCIe954 Chipset) - Optional 5V Power Output on Pin9 of DB9

  • Product Specification:

    • Dimensions 4 x 2.7 x 0.8 inches / 100 x 70 x 20 mm
    • Weight 2 ounces / 58 g
    • Capacity PCIe 1x Lane; up to 230 Kbps on each port
    • Chipset PLX/Oxford OXPCIe954
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets

  • Support 5V DC output in each Pin9 of DB9 connectors (total 2A5V DC supply from the card) for POS or other RS232-powered applications. The 5V DC output can be individually enabled/disabled for each DB9 Port.
  • Built with PLX/Oxford OXPCIe954 chipset which enables high performance 16C950 UART and is 6C550, 16C650, 16C750 and 16C850 backward compatible.
  • Includes both low profile and regular size PCI brackets. Fan-out cable design which helps avoid cluttered connections
  • Four 16C950 High performance UART DB9M channels with 128-byte deep FIFO per transmitter and receiver.
  • Fully RoHS compliant. Made in Taiwan



Product Description
The Ableconn PEX4S-954 adds 4 RS232 Serial Ports each with 128 byte deep FIFO at Low Profile PCIe card to your PC System. It supports 5V DC power in each Pin9 of DB9 connector, which makes it an ideal solution for many RS232-powered serial applications scuh as POS, bank teller systems, ATM, kiosks, and automated machines for cash drawers, receip printers, card swipers/readers, scales, bar code scanners, label printers, etc.

Specification

  • Built with PLX/Oxford OXPCIe954 chipset which enables high performance 16C950 UART and is 6C550, 16C650, 16C750 and 16C850 backward compatible.
  • Fan-out cable design which helps avoid cluttered connections
  • Includes both low profile and regular size PCIe brackets
  • 1x lane 2.5Gbps PCI Express host interface. Compliant with PCI Express Specification, revision 1.0a
  • Support 5V DC output in each Pin9 of DB9 connectors for POS or other RS232-powered applications. The 5V DC output can be individually enabled/disabled in each DB9 Port.
  • Jumper Selection:
  • - 4 x jumpers for setting Ring or 5V out in each Pin9 of DB9 connector
  • 128-byte deep FIFO per transmitter and receiver
  • 128 Tx interrupt thresholds and 128 Rx interrupt thresholds
  • Supports data transfer rate up to 230 Kbps on each port
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn PEX4S-954 4-Port RS232 Serial PCIe Card
  • 1x low profile PCIe bracket
  • 1x Quad-RS232 fan-out cable
  • 1x 4-Pin Molex to Floppy and 4-Pin Molex Power Y Cable
  • 1x Driver CD
