Ableconn IIDE-MSAT mSATA SSD to 2.5-Inch IDE Adapter Converter with Aluminum Frame Bracket - Latch and Retain mSATA SSD as 9.5mm 2.5

Ableconn IIDE-MSAT mSATA SSD to 2.5-Inch IDE Adapter Converter with Aluminum Frame Bracket - Latch and Retain mSATA SSD as 9.5mm 2.5

  • Product Specifications:

    • Dimensions 3.9 x 2.8 x 0.4 inches / 100 x 70 x 10 mm
    • Weight 1.9 ounces / 54 g
    • Capacity Up to 150 MB/s
    • Input mSATA (52-pin, Mini SATA) Receptale
    • Output IDE (44-pin, PATA) Male
    • Chipset Marvell 88SA8052
    • Compatibility OS independent; No driver installation required
    • Supported System Windows, Macs, and Linux
    • Certification CE, FCC, RoHS


  • Click button for purchase link:

  • Amazon US Amazon Japan

Product Description

Feature Bullets

  • Convert a full size mSATA SSD into a standard 9.5mm high 44-pin 2.5" IDE SSD drive.
  • Open frame aluminum housing dessign provides excellent heat dissipation for mSATA SSD
  • Compatible with most mSATA solid state drives such as the SAMSUNG 840/850 EVO
  • OS independent; No driver installation required. Native support in Windows, Mac and Linux.
  • Fully RoHS compliant. High quality product. Made in Taiwan.


Product Description

The Ableconn IIDE-MSAT let you convert an mSATA SSD into a standard 9.5mm high 2.5" IDE SSD drive. It provides excellient heat dissipation for mSATA SSD drive with the open aluminum frame design.

Features

  • Connector:
    • 1 x mSATA (52-pin, Mini SATA) Receptale
    • 1 x IDE (44-pin, PATA) Male



  • Chipset: Marvell 88SA8052
  • Data transfer rate:
    • Up to 150 MB/s



  • Jumper Selection:
    • 1 x jumper for selection of Master/Slave/Cable Select modes
  • Software:
    • OS independent; No driver installation required
    • Support Windows, Macs, and Linux



  • Convert Full Size mSATA SSD to High Performance, No Noise, Low Power 44Pin 2.5" IDE SSD
  • Supports SATA I, SATA II and SATA III (6Gbps) mSATA SSD

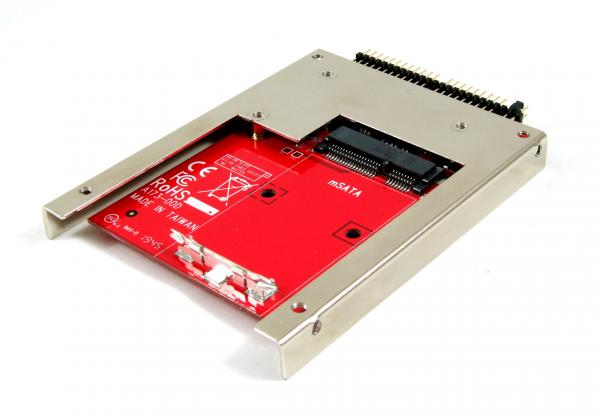

  • Latch type mSATA connector on board, no need the screw to retain mSATA SSD
  • 100% Compatible with 2.5" IDE drive mechanical spec
  • 48 bits LBA can Break Capacity-Limit to Support mSATA SSD max 144, 115, 188GB
  • Compliant with Serial ATA 2.6
  • Jumper setting support IDE Master, Slave and Cable Select Modes
  • Tag Command Queuing (Max 32 entries)
  • ATA/ATAPI PIO mode data transfer
  • ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
  • ATA/ATAPI-7 Streaming feature set

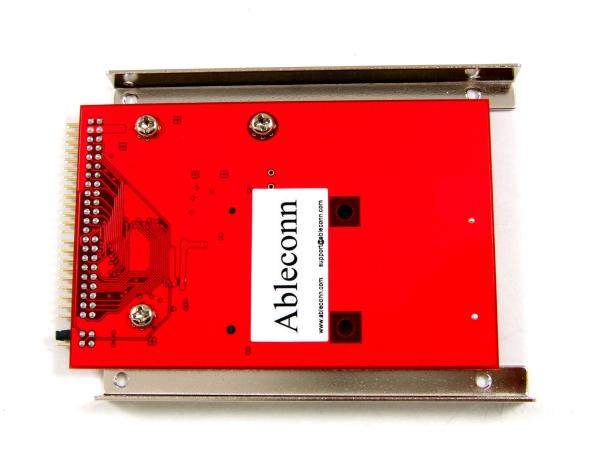

  • Includes 9.5mm height 2.5 " drive metal frame with 8 mounting holes and 4 HDD screws
  • Dimension of PCBA with 2.5" frame : 98mm x 69.85mm x 9.5mm
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn IIDE-MSAT mSATA SSD to 2.5in SATA Drive Converter
  • Mounting screw set (4x drive mount screws)
