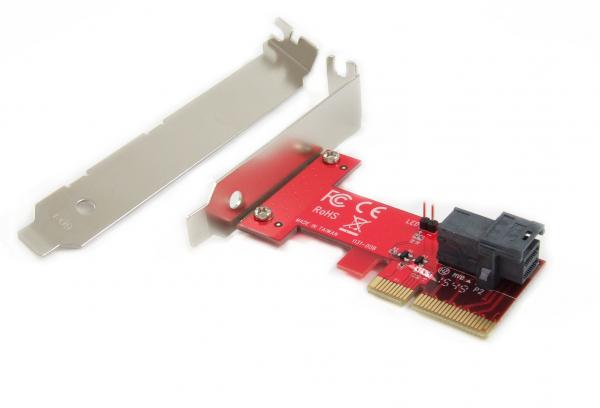

Ableconn PEXU2-131 PCI Express 3.0 x4 Host Adapter Card with miniSAS HD for U.2 PCIe-NVMe SSD - Support Intel U.2 SSDs

Ableconn PEXU2-131 PCI Express 3.0 x4 Host Adapter Card with miniSAS HD for U.2 PCIe-NVMe SSD - Support Intel U.2 SSDs

  • Product Specification:

    • Dimensions 3.3 x 2.0 x 0.6 inches / 82 x 50 x 18 mm
    • Weight 1 ounces / 28 g
    • Capacity PCIe 3.0 x4 Lane
    • Compatibility Intel 750 series U.2 2.5-inch SSDs and other U.2 SSDs
    • Supported System No driver installation required. Support Windows 10/8, Server 2012 R2, Linux, etc.
    • Certification CE, FCC, RoHS
  • United States Japan

Product Description

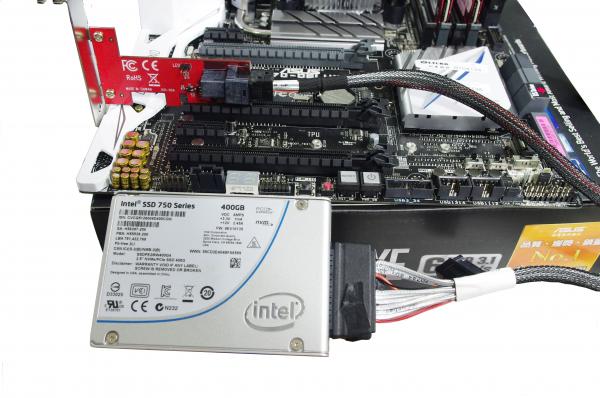

The Ableconn PEXU2-131 allow you to install a PCIe-NVMe U.2 2.5-inch SSD dive (such as Intel 750 U.2 SSD) through a Low Profile PCIe 3.0 x4 card to your PC System. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!



Feature Bullets

  • Convert U.2 2.5-inch PCIe-NVMe SSD to work in main board PCIe x4 bus slot
  • PCI Express 3.0 x4 Lane Host adapter. Supports PCIe 2.0 and PCIe 3.0 motherboard
  • Work with Intel 750 series 2.5-inch U.2 SFF SSD. Note: make sure the PCIe slot on motherboard configured as PCIe 3.0 and x4 mode capable to reach the highest performance.
  • No driver installation is required. Support Windows 10/8, Server 2012 R2, Linux, etc.
  • Fully RoHS compliant. Made in Taiwan.


Product Description
The Ableconn PEX-U2SSD allow you to install a PCIe-NVMe U.2 2.5-inch SSD dive (such as Intel 750 U.2 SSD) through a Low Profile PCIe 3.0 x4 card to your PC System. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!3.3 x 2.0 x 0.6 inches / 82 x 50 x 18 mm

Features

  • Connector:
    • 1x mini-SAS HD (SFF-8643, 36 Pin) Female
  • Software:
    • No driver installation is required.
    • Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe

Note: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941)
Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only

  • System Requirement:
    • An empty PCIe 3.0 or PCIe 2.0 x4, x8, or x16 slot.
  • Convert U.2 2.5-inch PCIe-NVMe SSD to work in main board PCIe x4 bus slot
  • PCI Express 3.0 x4 Lane Host adapter
  • Supports PCIe 3.0 and PCIe 2.0 motherboards
  • Low Profile PCIe Form Factor
  • Low Profile PCIe bracket on board and Regular size bracket included
  • Transparent to the operating system and no driver required
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn PEXU2-131 PCIe 3.0 x4 Host Adapter Card for U.2 2.5-inch PCIe-NVMe SSD
  • 1x Regular profile PCIe bracket
