Ableconn M2-U2-131 M.2 Module with SFF-8643 Mini-SAS HD 36Pin connector for U.2 (SFF-8639) PCIe-NVMe SSD - Support Intel 750 2.5-inch U.2 SFF SSD

Ableconn M2-U2-131 M.2 Module with SFF-8643 Mini-SAS HD 36Pin connector for U.2 (SFF-8639) PCIe-NVMe SSD - Support Intel 750 2.5-inch U.2 SFF SSD

  • Product Specification:

    • Dimensions 2.5 x 0.9 x 0.6 inches / 63 x 21 x 16 mm
    • Weight 0.2 ounces / 6 g
    • Capacity PCIe x4 Lane
    • Supported System No driver installation required. Support Windows 10/8, Server 2012 R2, Linux, etc.
    • Certification CE, FCC, RoHS
  • Buy at Amazon

Product Description

Feature Bullets

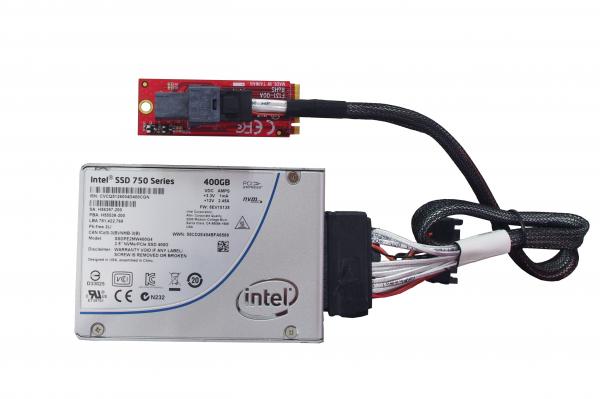

  • Connect an Intel 2.5-inch U.2 PCIe-NVMe SSD to system via an M.2 socket using a SFF-8643 cable
  • M.2 NGFF 2260-D5-M 75Pin PCBA module with PCI Express x4 interface; Compliant with PCI Express 3.0 x4 Lane.
  • Support Intel 750 series 2.5-inch U.2 SFF SSD
  • No driver installation required. Support Windows 10/8, Server 2012 R2, Linux, etc.
  • Fully RoHS compliant. Made in Taiwan.


Product Description

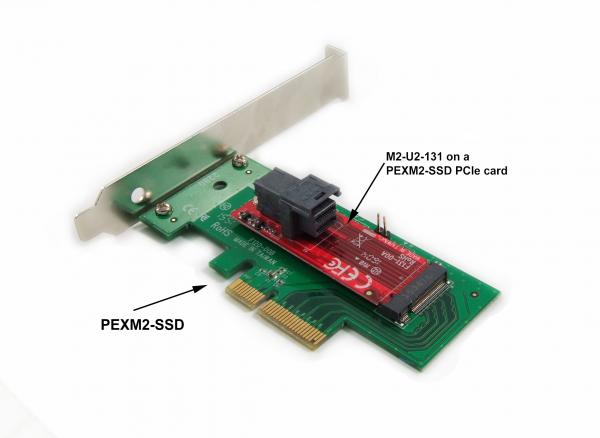

The Ableconn M2-U2-131 allows you to install a PCIe-NVMe U.2 2.5-inch SSD drive (such as Intel 750 U.2 SSD) through an M.2 add-in card to your PC System. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!

Features

  • Connector:
    • 1x mini-SAS HD (SFF-8643, 36 Pin) Female
  • Software:
    • - No driver installation is required.
    • - Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe

Note: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941)

Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only

  • System Requirement:
    • An empty M.2 socket.
  • Connect an Intel 2.5-inch U.2 PCIe-NVMe SSD to motherboard via an M.2 socket
  • M.2 NGFF 2260-D5-M 75Pin PCBA module with PCI Express x4 interface
  • Compliant with PCI Express 3.0 x4 Lane
  • Support Intel PCIe-NVMe U.2 SSD
  • Transparent to the operating system and no driver required
  • Supports industrial operating temperature range: -40 - 85 ºC
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents

  • Ableconn M2-U2-131 M.2 Module with Mini-SAS HD 36Pin connector for U.2 NVMe SSD
