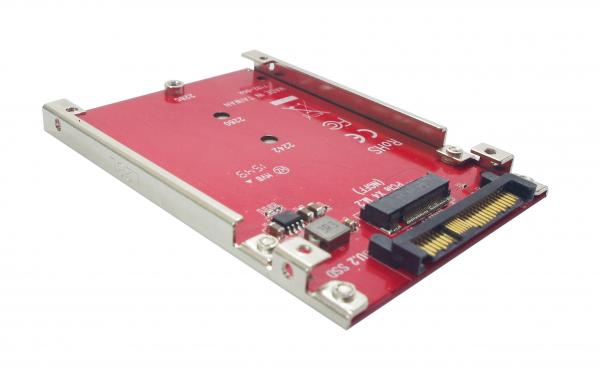

Ableconn IU2-M2132 M.2 NVMe SSD to U.2 (SFF-8639) 2.5-Inch SSD Adapter with Aluminum Frame Bracket - Turn M.2 NVMe SSD as U.2 (SFF-8639) 2.5" Solid State Drive

Ableconn IU2-M2132 M.2 NVMe SSD to U.2 (SFF-8639) 2.5-Inch SSD Adapter with Aluminum Frame Bracket - Turn M.2 NVMe SSD as U.2 (SFF-8639) 2.5" Solid State Drive

  • Product Specification:

    • Dimensions 3.9 x 2.8 x 0.3 in / 100 x 70 x 7 mm
    • Weight 1.2 ounces / 34 g
    • Compatibility OS independent; No driver installation required
    • Supported System Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support NVMe
    • Certification CE, FCC, RoHS
  • United States Japan

Product Description

Note: this adapter is only for 'M' key M.2 NVMe SSD









Feature Bullets



  • Convert a M.2 NVMe SSD to a 2.5" U.2 68-pin SFF-8639 solid state drive.
  • Open frame aluminum housing dessign providing excellent heat dissipation for M.2 NVMe SSD
  • Compatible with most M.2 NVMe solid state drives such as the SAMSUNG 950 Pro
  • Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support NVMe.
  • Fully RoHS compliant. High quality product. Made in Taiwan.


Product Description

The Ableconn IU2-M2132 let you convert a M.2 NVMe SSD to a 2.5" U.2 68-pin SFF-8639 solid state drive. It provides excellent heat dissipation for M.2 SSD with the open aluminum frame design.


Specification

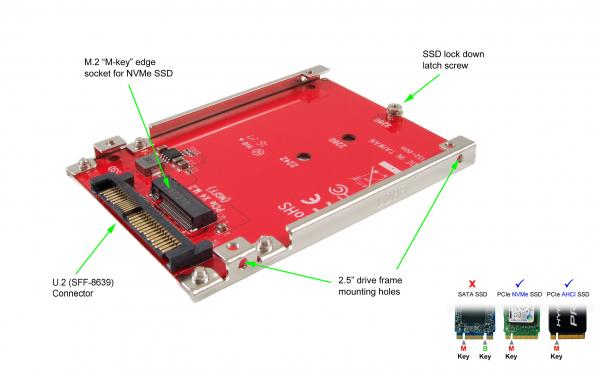

  • Connector:
    • 1x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe-NVMe SSD
    • 1x U.2 connector (SFF-8639, 68 Pin) male
  • Software:
    • OS independent; No driver installation required
    • Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support NVMe

Note: NVMe native driver for Windows 7 and Windows Server 2008 R2 is available from Microsoft Knowledge Base (https://support.microsoft.com/en-us/kb/2990941)



  • Convert PCIe-NVMe M.2 SSD to 2.5" SFF-8639 U.2 SSD
  • Supports PCIe Gen3 M.2 NGFF 80mm, 60mm, 42mm SSD
  • Compliant with PCI Express 3.0
  • Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 SSD
  • Supports dual-sided SSD module 1.5mm component height on the top and bottom side
  • Includes 2.5" drive metal frame with 8 mounting holes and 4 HDD screws
  • Supports M.2 PCIe SSD 3.3V/5A High Power
  • Fully RoHS compliant
  • Made in Taiwan


Package Contents



  • Ableconn M.2 NVMe SSD to U.2 2.5-Inch SSD Adapter
