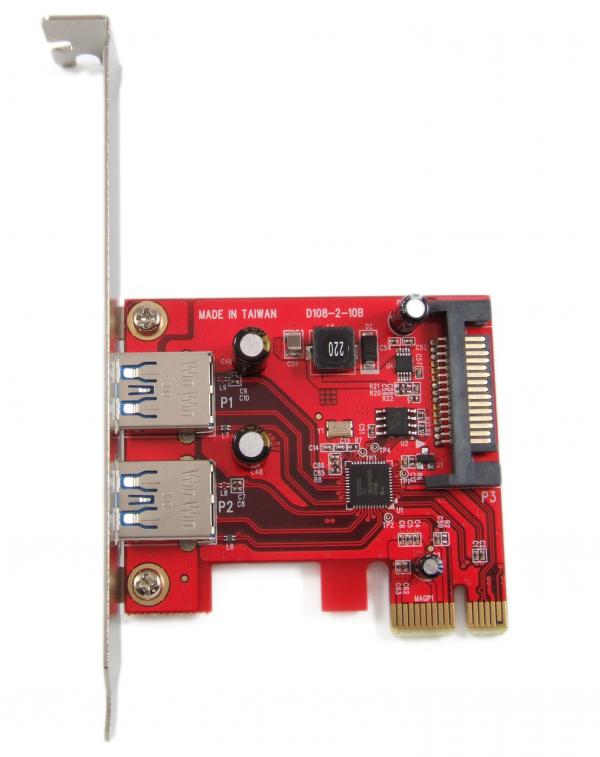

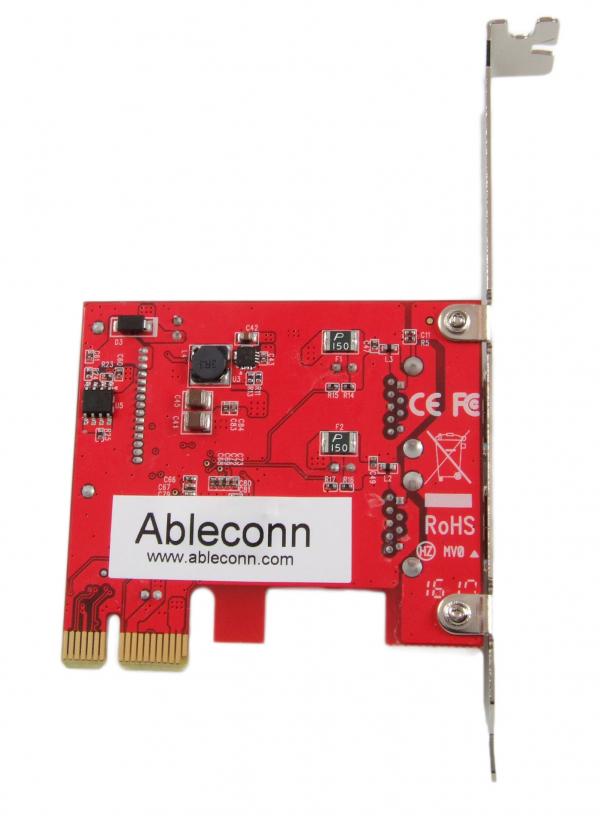

Ableconn PEX-UB108 USB 3.0 2-Port PCI Express (PCIe) Host Adapter Card - Renesas UPD720200 chipset

Ableconn PEX-UB108 USB 3.0 2-Port PCI Express (PCIe) Host Adapter Card - Renesas UPD720200 chipset

  • Product Specification:

    • Dimensions 2.8 x 2.5 x 0.7 in / 68 x 63 x 18 mm
    • Weight 1.5 ounces / 44 g
    • Capacity USB 3.0 up to 5 Gbps
    • Chipset Renesas (NEC UPD720200)
    • Compatibility No driver installation is required on Windows 10, 8, Server 2012, Linux kernel 2.6.31 and later OS.
    • Certification CE, FCC, RoHS
  • United States

Product Description

Feature Bullets

  • Two USB 3.0 Type-A connectors. Up to 5Gbps data transfer speed.
  • PCIe x1 lane Low Profile board. Include both Low Profile and Regular Size PCIe brackets.
  • Instead of taking 5V power directly from power supply, our design includes power switching regulator circuit that automatically converts 12V from PCIe bus or from 15-Pin SATA power to ensure sufficient 5V/1.5A bus power on each USB port.
  • No driver installation is required on Windows 10, 8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
  • Built with NEC Renesas UPD720200. Fully RoHS compliant. Made in Taiwan.



Product Description



  Add two SuperSpeed USB 3.0 Type-A ports with up to 5Gbps data rate to your system.


Specification

  • Connector:
    • 2 x USB 3.0 Type-A female
    • 1 x 15-pin SATA power connector (optional connection)
  • Chipset: Renesas (NEC UPD720200)
  • Software:
    • No driver installation is required on Windows 10, Win8, Server 2012, Linux kernel 2.6.31 and later OS. The OS buit-in USB drivers support UASP.
    • The Renesas drivers are available for 32/64 bit Windows Windows 7/Vista/XP, and 64bit Server 2008 R2
  • Data transfer rate:
    • USB 3.0 up to 5 Gbps
  • USB 3.0 PCI Express 2.0 x1 Lane Host Adapter
  • Supports PCIe 1.0 and PCIe 2.0 motherboard
  • Compliant with PCI Express Specification 2.0
  • Compliant with Universal Serial Bus 3.0 Specification Rev. 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
  • Compliant with USB Attached SCSI Protocol (UASP) Specification 1.0
  • Support USB3.0, USB2.0 and USB1.1 devices
  • Provides USB 3.0 power to USB devices from Motherboard PCIe slot directly, or from PC power supply if on board 15Pin SATA power connector connected
  • Low Profile PCIe Form Factor board
  • Include both Low Profile and Regular Size PCIe brackets
  • Fully RoHS compliant.
  • Made in Taiwan



Package Contents

  • Ableconn USB 3.0 2-Port PCIe Host Adapter Card
  • One (1) low profile PCIe bracket
  • Quick Installation Guide
